1000W 12V Wind Turbine Generator Kit with 5pcs 120W Flexible Solar Pan

1000W 12V Wind Turbine Generator Kit with 5pcs 120W Flexible Solar Panels/400W Windmill /50A Solar Charge Controller/Wind Regulator/Cables/Connectors for Mobile Home

$345.71 $866.00

NOTES:

1.Please tell us you need 12V/24V System, so we can decide to ship 12V/24V Wind turbine generator.

2.The controller is 12V/24V autodetect, please connect the battery to the controller firstly, and then connect the solar panel and wind turbine with the controller

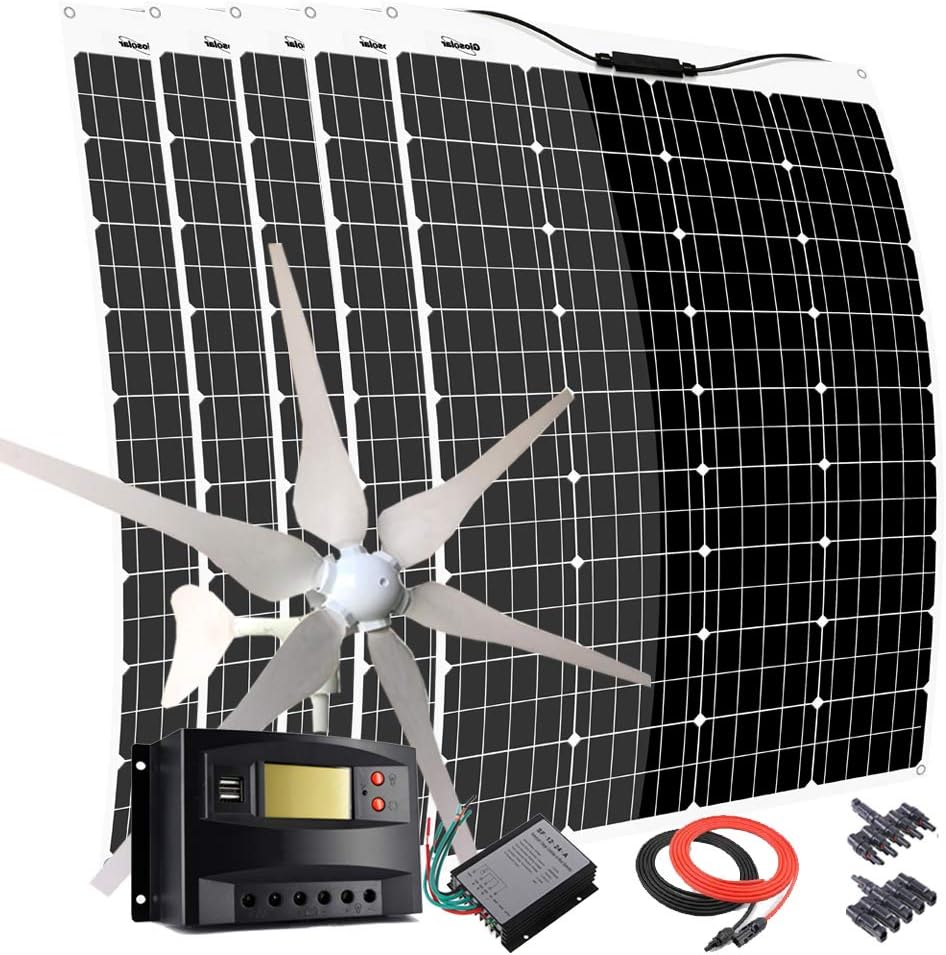

The Giosolar 1000W 12V Solar Wind kit includes:

- 5x 120W Flexible Mono solar panel attached with 90mm of solar cable and waterproof connectors
- 1x 400W 12V Wind Turbine Generator
- 1x PWM 50A 12V/24V Solar Charge Controller
- 1x 12V/24V Wind Charge Controller
- 1x 5M solar cable with connectors ( Red about 2.5M, Black about 2.5M)
- 1 Pair of Y Branch Connectors

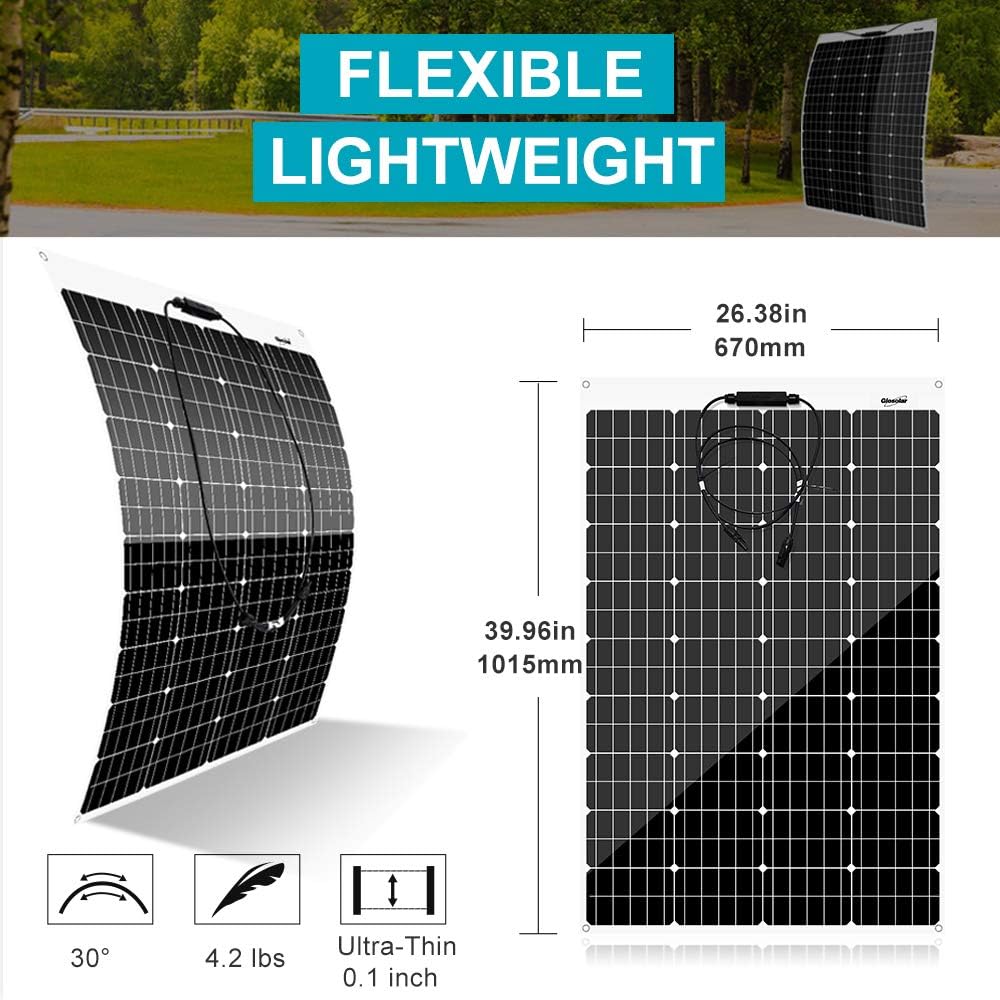

120W Flexible Monocrystalline Solar Panel Specifications:

- Maximum Power: 120W
- Optimum Operating Voltage (Vmp): 18 V
- Open-Circuit Voltage (Voc): 21.6 V
- Optimum Operating Current (Imp): 6.67 A
- Short-Circuit Current (Isc): 7.23 A
- Dimensions: 1015*670*2.5mm / 39.96 X 26.38 X 0.1 In
- Weight: 4.4lbs (2.2KG)
- 90mm of special cable with connectors attached

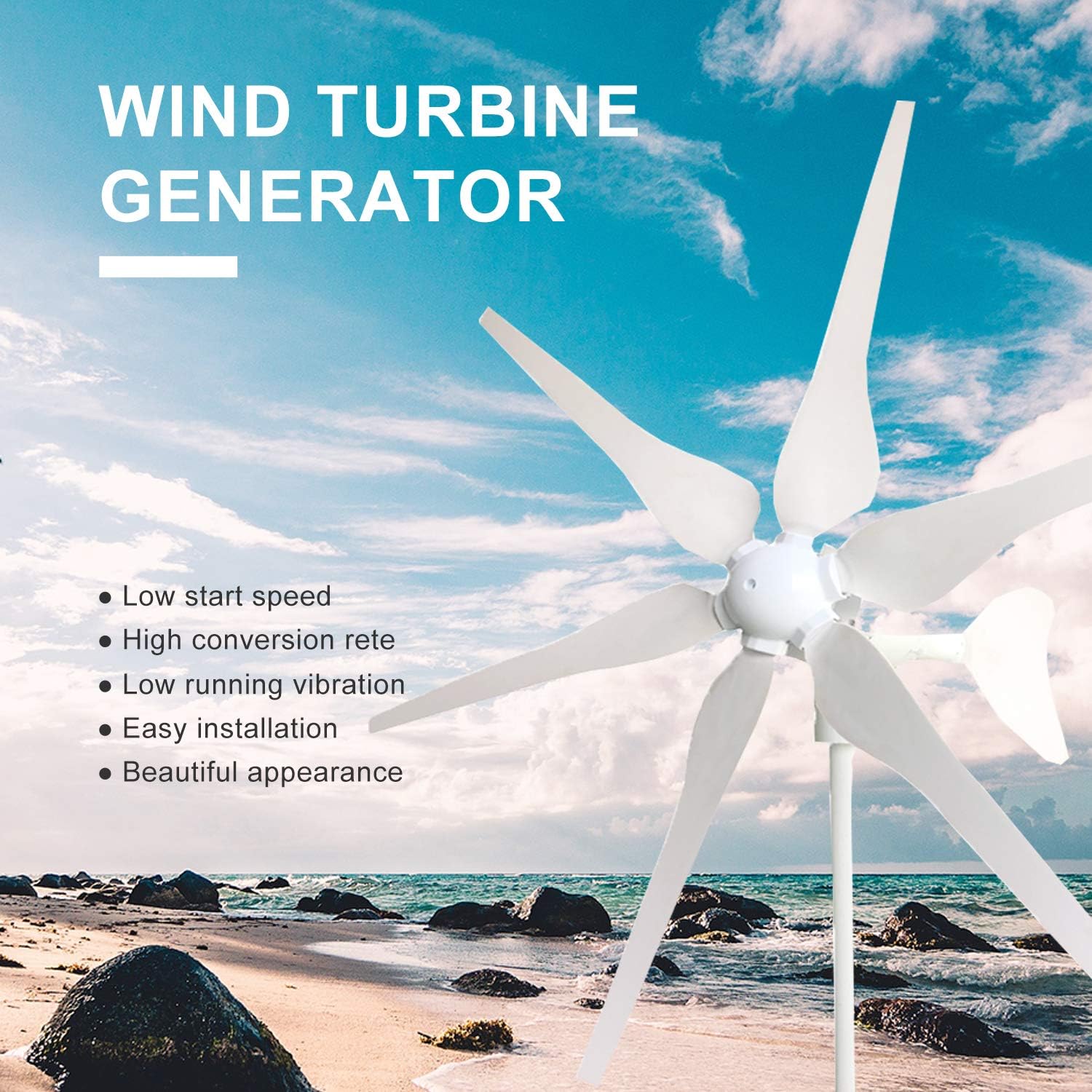

400W Wind Turbine Specification:

Nominal Voltage: DC 12-24V
Cut-in Wind Speed: 2.5m/s
Rated wind speed: 10.5m/s
Maximum Wind speed:35m/s
Rotor diameter: 1.2M
Tower diameter: Suggest more than 48mm
Altutude of towe: 4.5M-10M
Net weight: 17.64Ibs (8kg)
