XINPUGUANG Flexible Solar Panel 100W 12V Monocrystalline 500W Solar Ki

XINPUGUANG Flexible Solar Panel 100W 12V Monocrystalline 500W Solar Kit 50A Charge Controller Extension Cable Battery Cable Off-Grid for RV Boat Cabin Tent Car(500W-1)

$209.40 $569.90

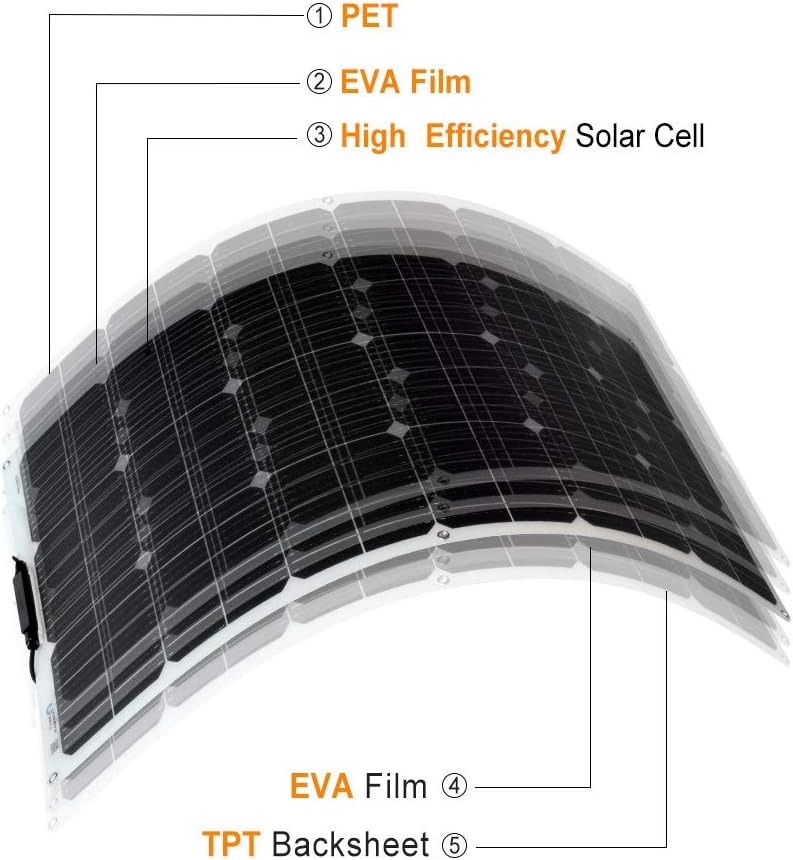

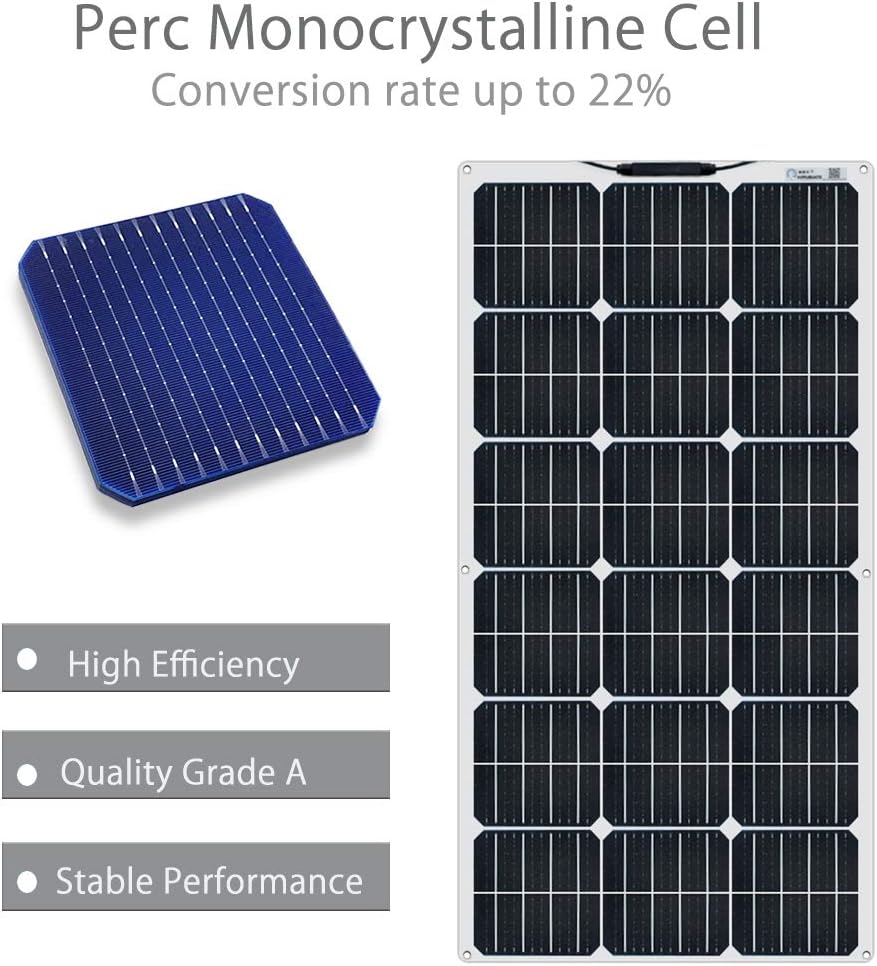

The XINPUGUANG 100Watt flexible solar panel is made of PERC Monocrystalline cell with a conversion rate of 22%. The weight is 1.85kg（4lb）, which is 20% of the traditional solar panels.Size is 37.6x20.86x0.11 in

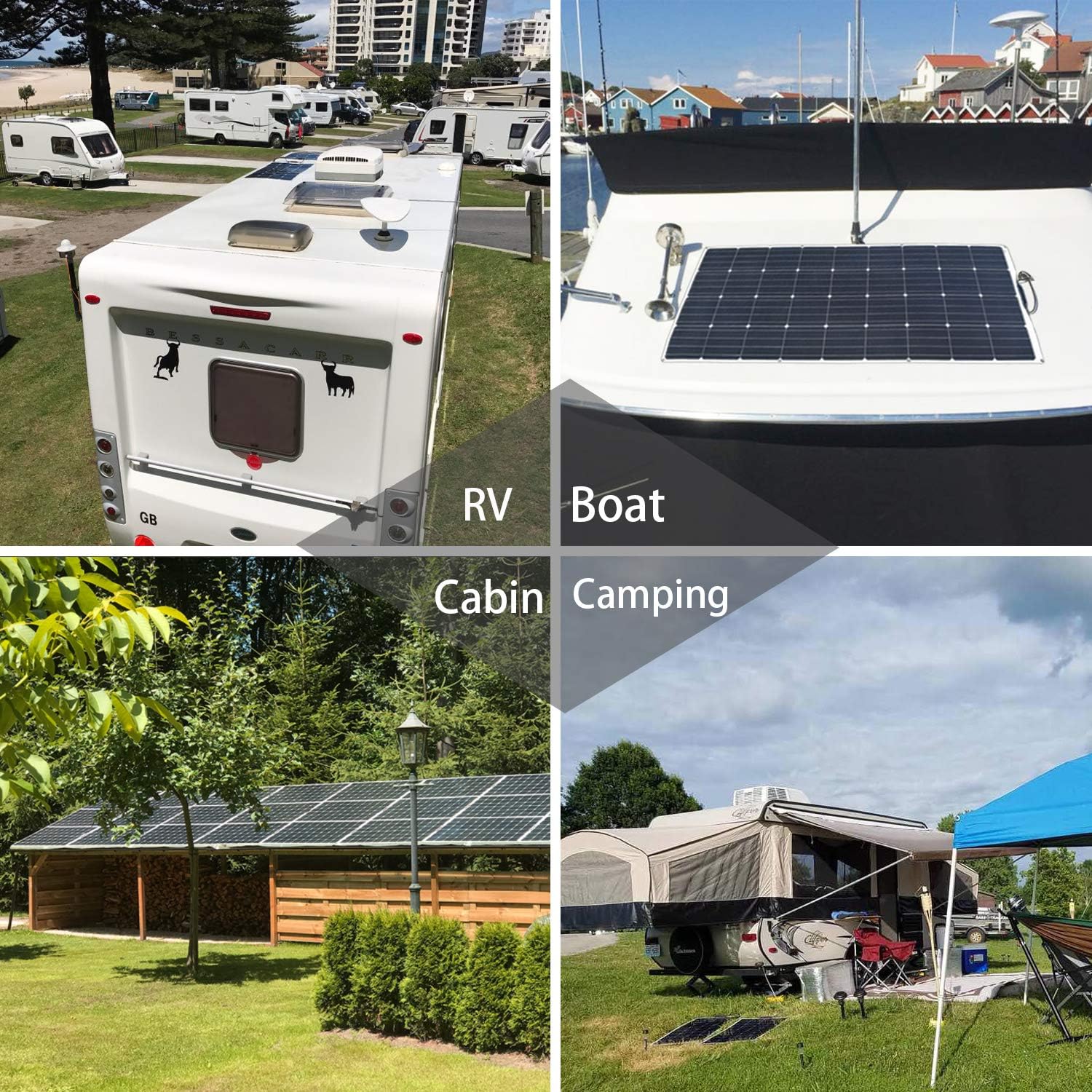

The lightweight nature of flexible solar panels makes solar panels more effective for use in RVs, caravan，boats, tents, trailers, cabin, etc. Portable, easy to install, plug and play.

Specification Maximum power(Pmax) 100W
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 6.11 A
Maximum power voltage(Vmp) 18V
Maximum power current(Imp) 5.55A
Temperature range -40℃～+80℃
Maximum system voltage ：700V DC
Weight 1.85kg(4 lb)

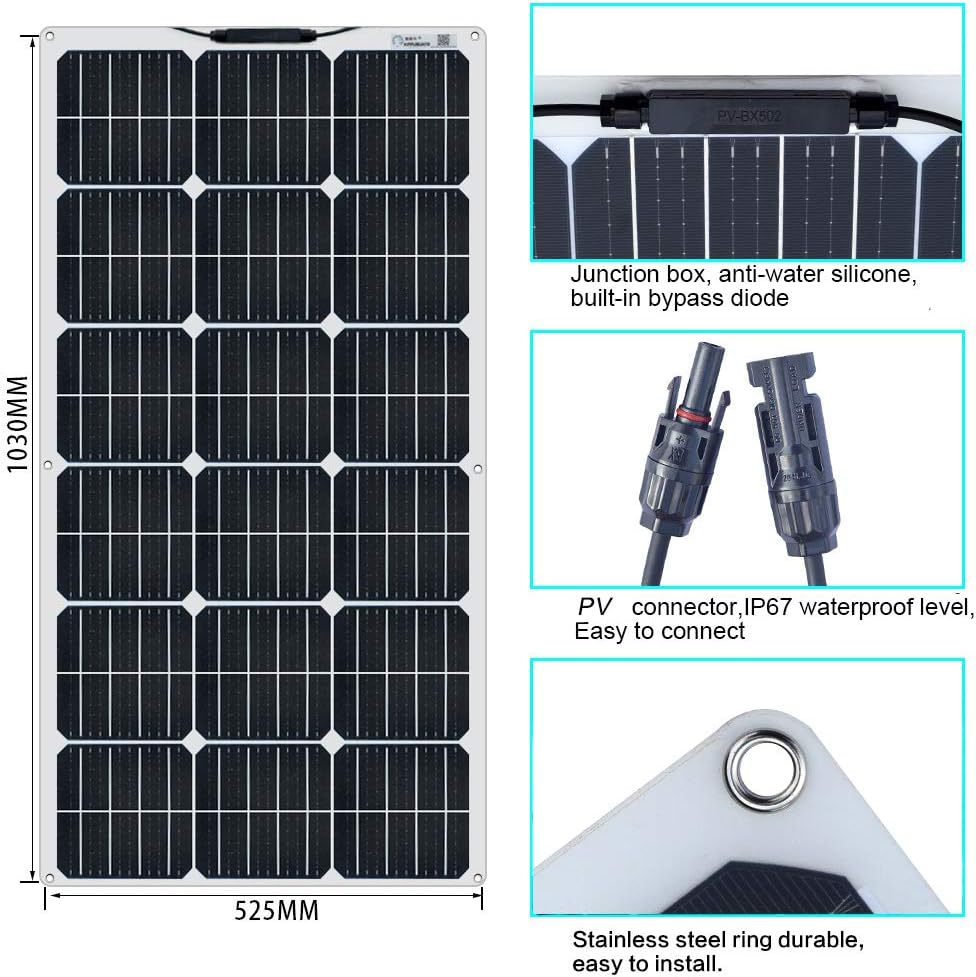

Size 37.6x20.86x0.11 in
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

SOLAE CONTROLLER
System voltage of battery 12V/24V/36V/48V automatic recognition;
Intelligent 4 stages PWM charging: Bulk, Absorption, Equalize, Float;
LCD display with Back-lighting shows device's operating data and working condition;
Humanized simple button operation; Adjustable charge-discharge control parameters;
Support more kinds of battery: Lead-acid battery (Sealed, Gel, Flooded) and Lithium battery (LiCoMnNiO2, LiFePO4);
Multiple load control modes: 24Hours Working Control, Light Control, Light and Dual Time Control;
Automatic temperature compensation and accumulated function of charge and discharge KWH;
Double USB output 5V/2A;

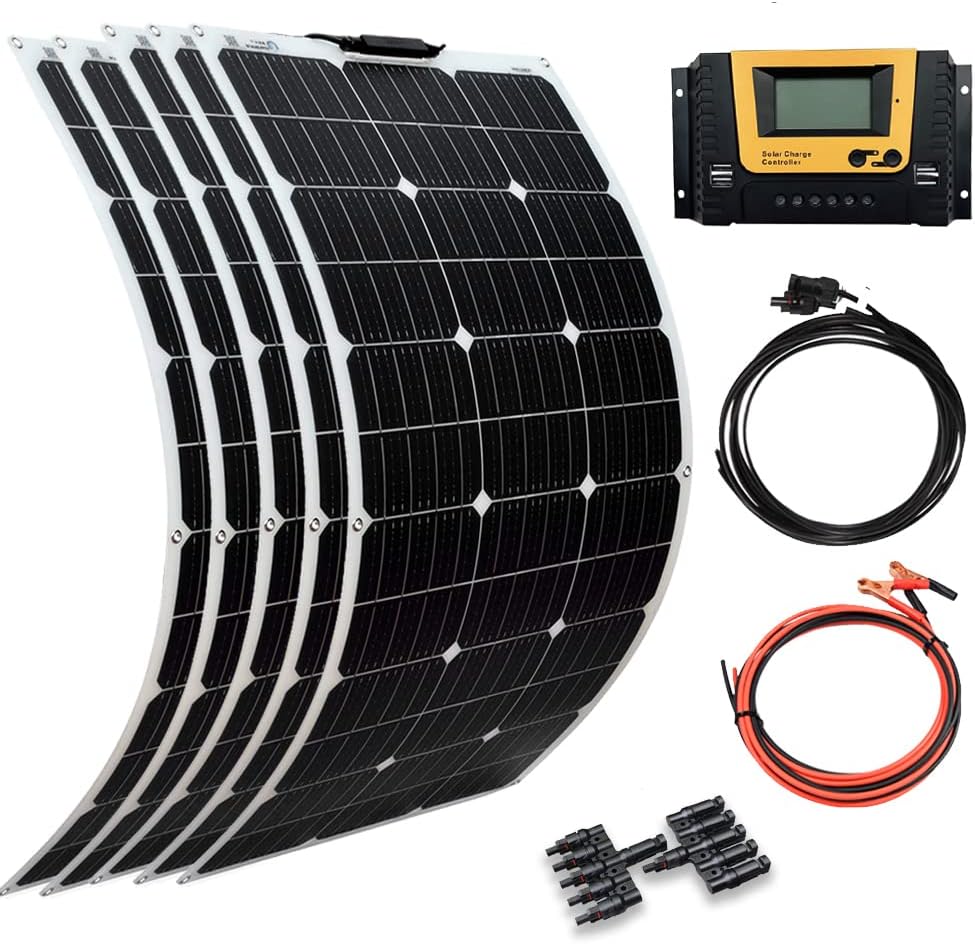

Packing list
1. 5pcs 100w solar panel
2. 1pcs 12v/24v/50A charge controller
3. 1set 3M cable with PV connector
4. 1set 3M cable with alligator clip
5. 1set 5 in 1 parallel adapter
